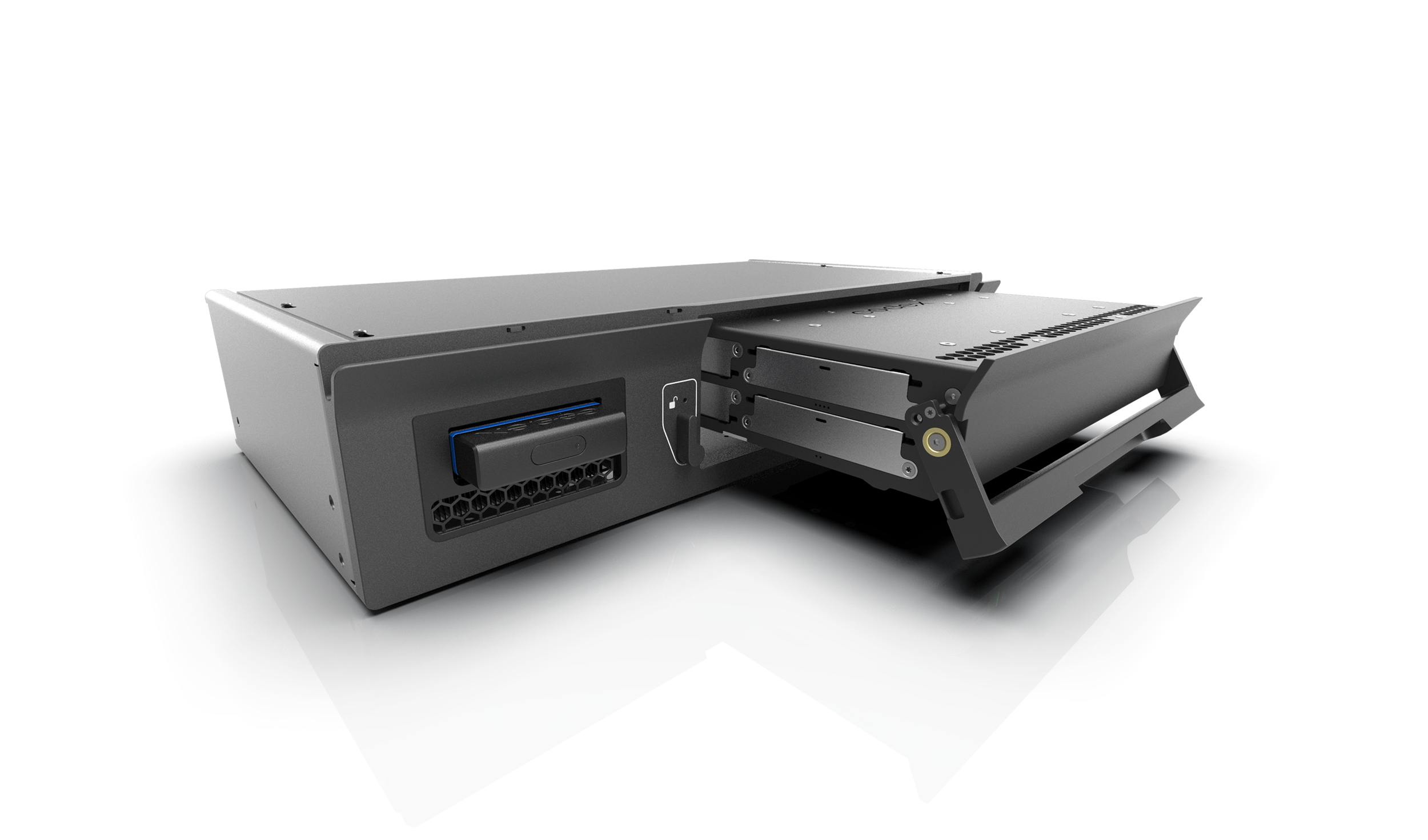

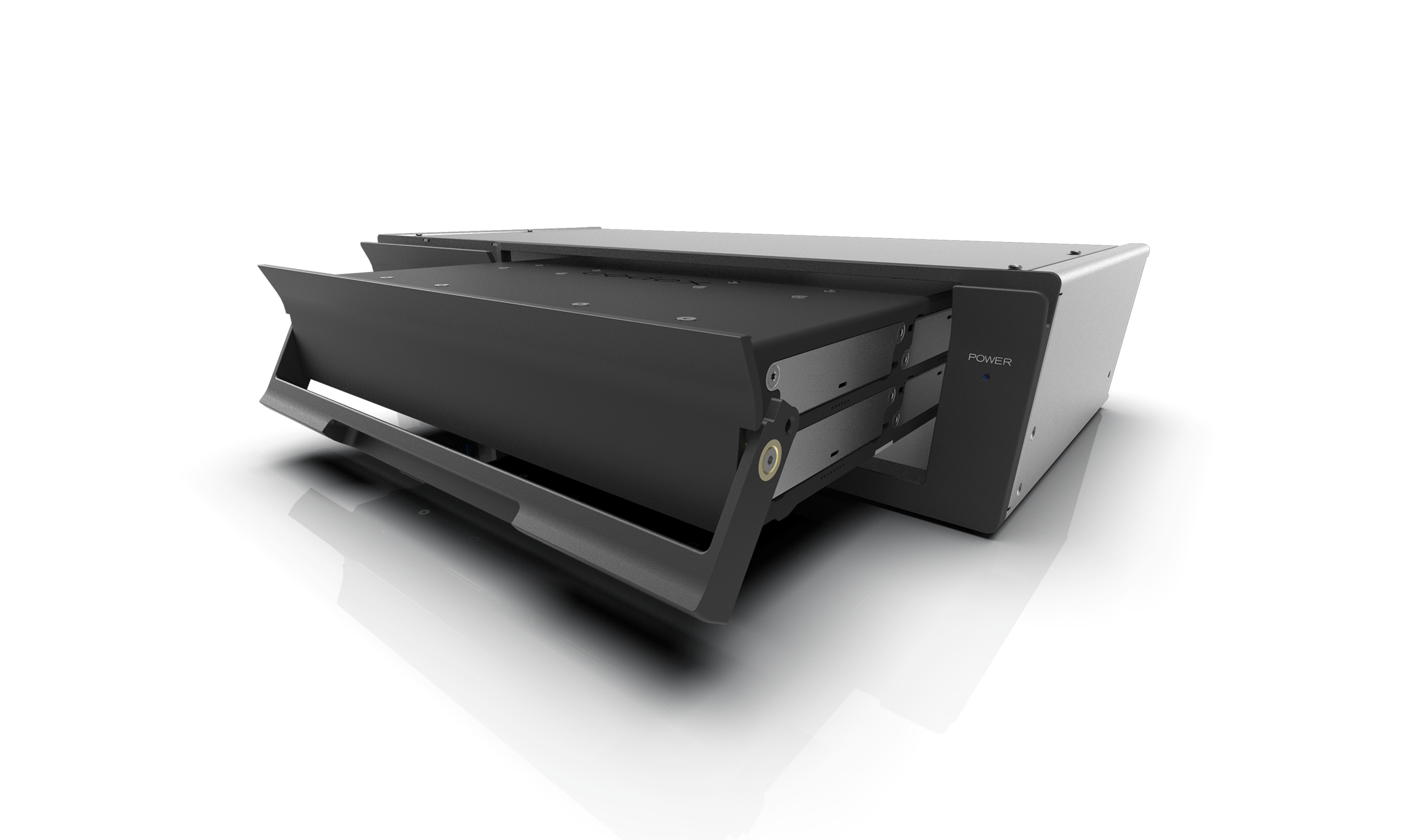

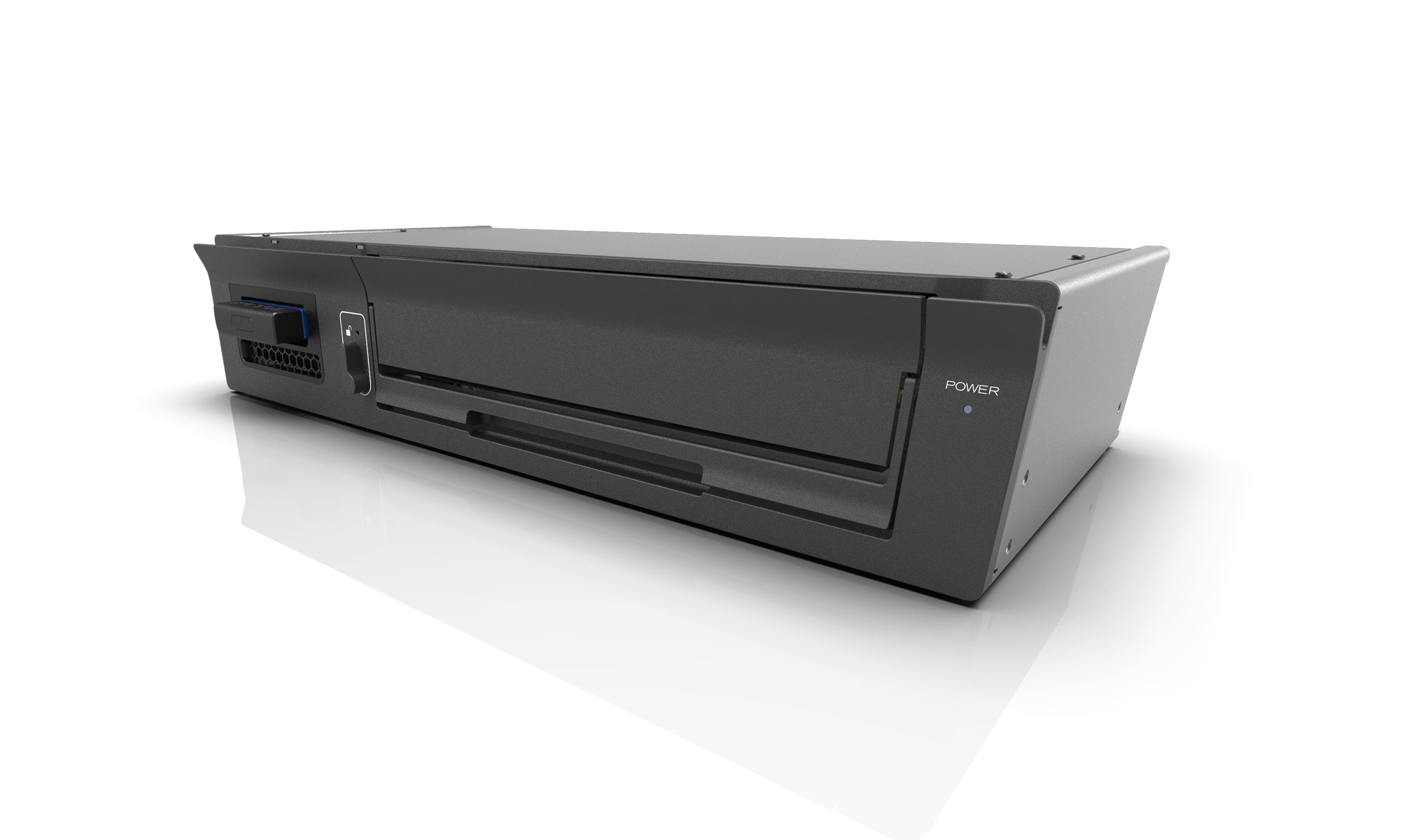

Capture+Transfer Drive Dock

Enables the high-speed cloning of Codex Capture Drives and the transferring of data to the Codex 8 TB Transfer Drive at clone speeds of 10Gb/s or 1300MB/s.


Specification


KEY FEATURES
  • Compatible with Codex Production Suite for macOS featuring Codex Vault Platform™ and Review™, providing a perfect companion to a Vault workflow. Ideal for use rack-mounted into a DIT cart, or use with 2nd unit splinter team already using a Codex Vault workflow.
  • 2RU rack mount.
  • Thunderbolt 3 interface.
  • Interface speed up to 40Gb/s.
  • The CDX-62102-3 provides the gateway for dailies, QC, review and archiving.

TECHNICAL
Interface Thunderbolt 3
Operating System Device Manager or Production Suite on macOS 10.12 or higher
Dimensions [W x D x H] 482mm [19”] x 508mm [20”] x 2RU
Weight 5.8kg [12.8lbs]
Operating Temperature 0°C ~ 40°C [32°F ~ 104°F]
Operating relative humidity to 95% [non-condensing]
Storage Humidity to 95% [non-condensing]
Power 115/230VAC and 225W max
Insertion/removable durability 10,000 actions
Clone Speed 10Gb/s or 1300MB/s
Warranty 1 year limited warranty
Product Code CDX-62102-3
